Installation guide

Precision-engineered roller doors for homes and businesses. Buy direct from the UK manufacturer to cut out the middlemen.

Build Your Roller Shutter DoorCall us on 0191 691 7810

Choose the type of door you are installing

Full installation guides can be found below. Pick whether you are installing an insulated aluminium residential door or a galvanised steel industrial door.

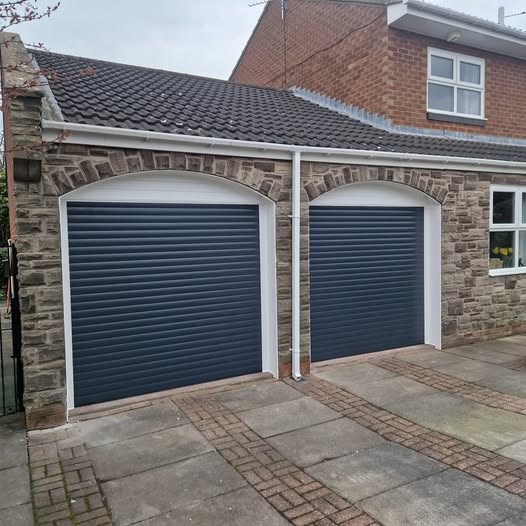

  • Anthracite grey insulated roller garage door fitted to a modern detached home

    Domestic roller garage doors

    Installation guide for insulated 55mm and 77mm aluminium profiles designed to keep your garage warm, secure, and looking incredible.

    Read residential installation guide

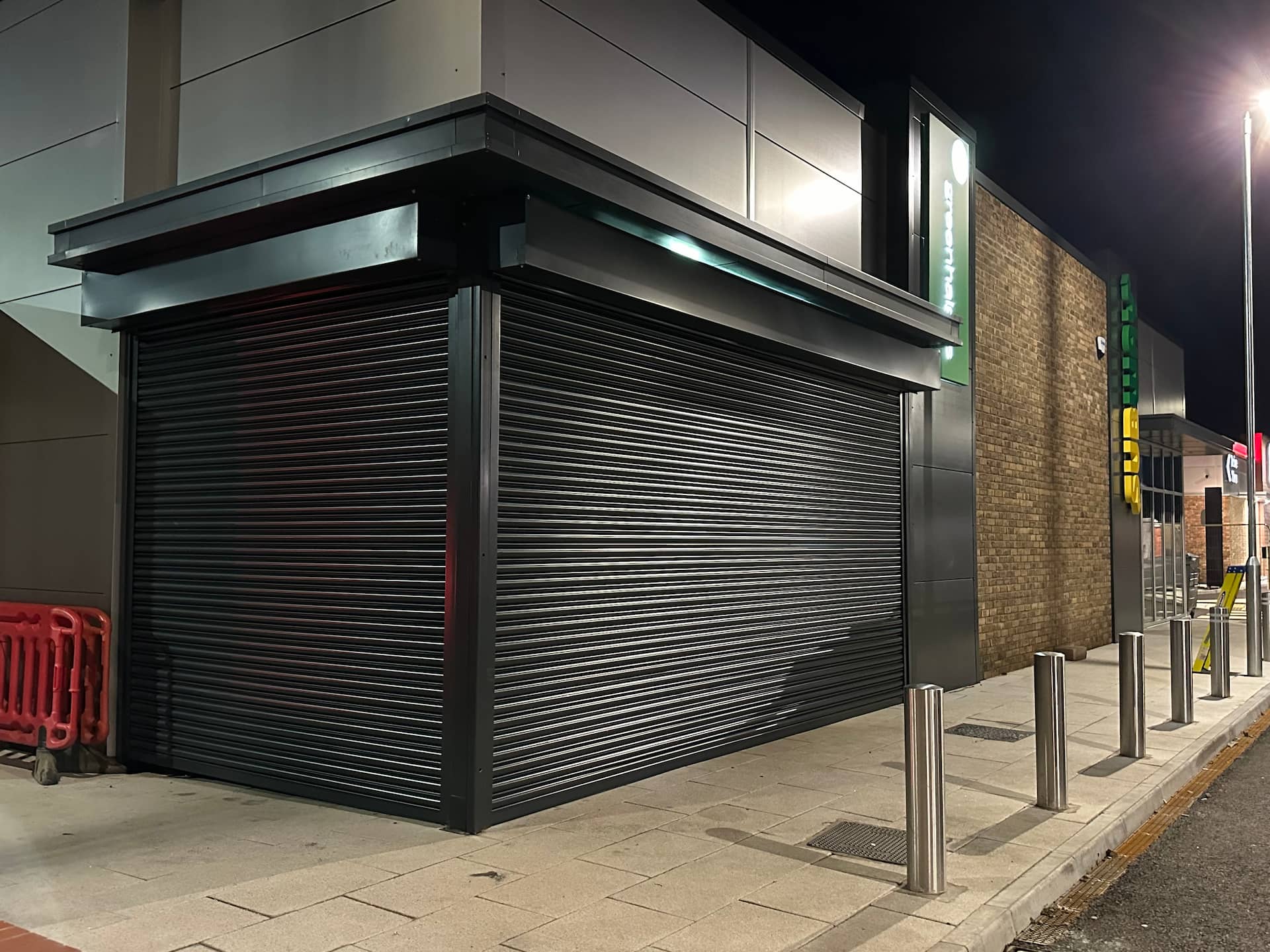

  • Large galvanised steel commercial roller shutter on an industrial unit

    Commercial & industrial shutters

    Installation guide for 75mm and 95mm galvanised steel profiles engineered for maximum security and wind resistance.

    Read industrial installation guide

Box type

We offer two different box types for our domestic doors:

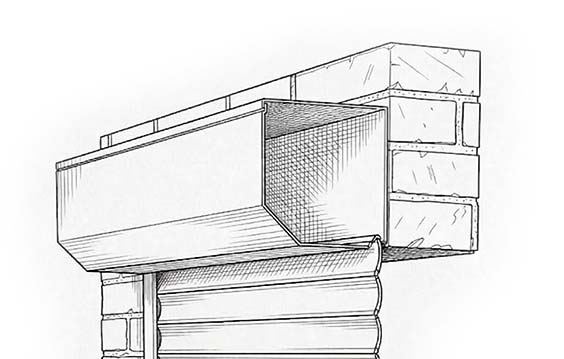

Full box

  • The Look: Completely encloses the roll in a sleek aluminum housing.
  • The Benefit: Protects the motor and curtain from dust, grit, and nesting birds. It’s also a vital safety barrier if you use your garage for storage or as a workshop.
  • Verdict: Choose this for a "clean" professional finish and maximum longevity.

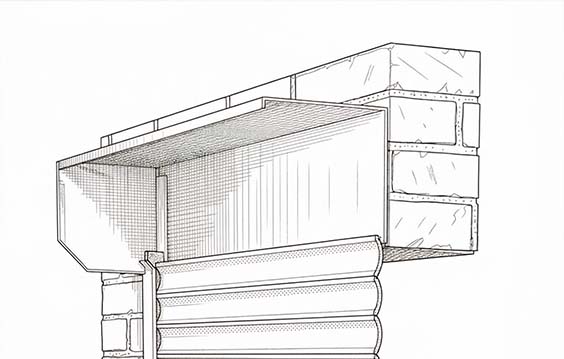

Half box

  • The Look: An L-shaped fascia that covers the front and top. The back of the roll remains visible from inside the garage.
  • The Benefit: Saves on cost while still providing a neat appearance from the driveway.
  • Verdict: Best if you are on a budget and don't mind seeing the mechanism from inside the garage.

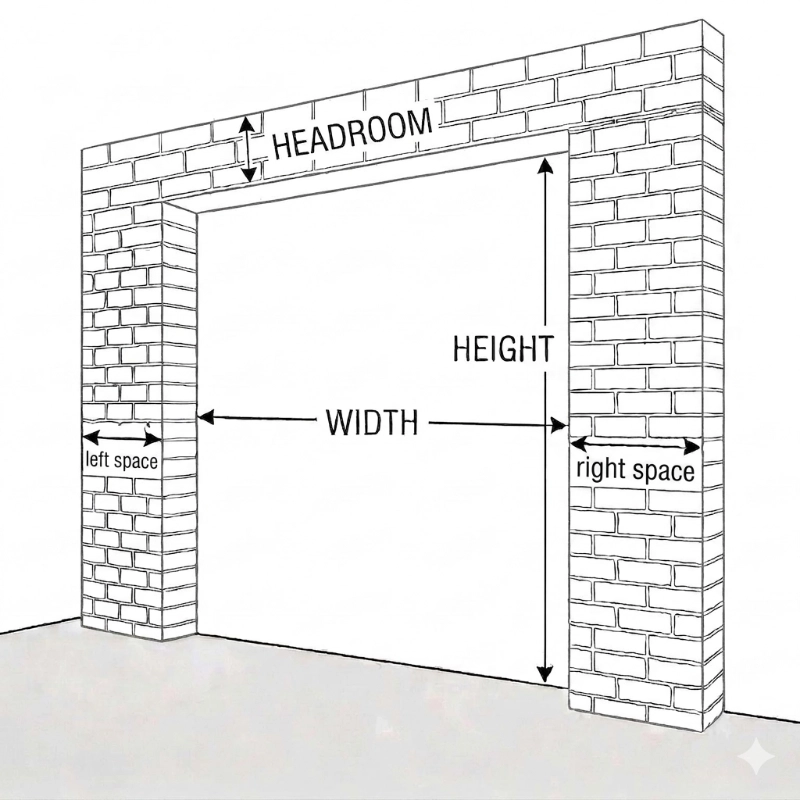

How to measure for your door

We manufacture your door based on the "Daylight" size (the actual hole in the wall). Measurements must be taken viewing the opening from the inside looking out.

Step 1: The Width

Measure the width between the brickwork at the top, middle, and bottom. Use the narrowest measurement.

Step 2: The Height

Measure from the internal floor to the underside of the lintel. Ensure the floor is level.

Step 3: Right space

Measure space from opening to the first obstacle.

Step 4: Left space

Measure space from opening to the first obstacle.

Step 5: Headroom

Headroom from the start of the lintel and lowest part of the ceiling.

Installation options

Option A - Face fix

Fixing internally behind the opening.
Roller garage door face fixing

Option B - Reveal fix

Fixing between the opening.
Roller shutter door reveal fixing

Option C - Combination fix, face and reveal fixing

One side fixed between the opening and one side behind.
Garage roller shutter door combination fixing

Option D - Undersize fix

Some of the guide track will be in the opening.
Garage roller door undersize fix

Clearance requirements

  • 77mm Slat: Needs 300mm above the lintel.
  • 55mm Slat: Needs 205mm above the lintel.
  • Sideroom: You need 90mm on each side for the guide rails for fixing behind the openings

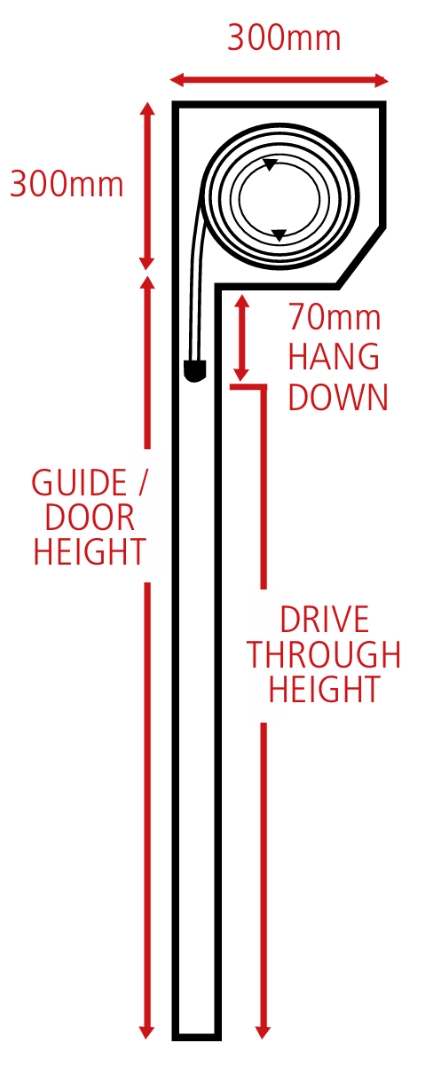

Side profile

Please note that when the roller door is fully open, the bottom slat will always hang down by approximately 70mm from the top of the guide rails.
